XF2 Trail
The All-Rounder
sold out
The HNF-NICOLAI XF2 TRAIL defines its own category of a full suspension eMTB. While suspension travel (front: 170mm / rear: 160mm), wheel size (27.5″) and tyres indicate enduro usage, geometry and specifications lead to an outstanding mixture of touring, trail and even everyday use. The comfortable geometry allows easy and playful handling even at low speeds and guarantees relaxed pleasure even on longest rides. Low-maintenance components such as the combination of Gates Carbon Drive and Rohloff gear hub with electronic E-14 control make the XF2 an all-round worry-free bike for everyday trail riding.
Belt Tensioner Made By Nicolai
The spring-loaded belt tensioner developed by Kalle Nicolai makes it possible to use the GATES CARBON DRIVE on the full-suspension XF2. When deflecting, the rear wheel moves slightly away from the crank axle. Rear suspension systems therefore require the belt tension to be compensated. The tensioner has a ball-bearing mounted pulley on the underside of the belt to ensure a constant belt tension even in hard off-road use.
Anti Squat Kinematics
All of the suspension’s bearing points are designed to bring pedal forces into balance with the mass forces of the driver. This effectively prevents the frame from bobbing when accelerating - and the entire pedal energy is available for propulsion.
ANTI-SQUAT Kinematics
All of the suspension’s bearing points are designed to bring pedal forces into balance with the mass forces of the driver. This effectively prevents the frame from bobbing when accelerating - and the entire pedal energy is available for propulsion. The bike allows a combination of long suspension travel with nearly maintenance free gear and belt technology, thanks to propulsion – neutral design of the frame in combination with a custom-made belt tensioner.
Bearing Technology
The rear of a full-suspension bike is not a static component, it is exposed to extreme forces during driving. Critical points are the ball bearings, which ensure low breakaway torque and optimum response of the chassis. For long maintenance intervals, the XF2 is fitted with heavy-duty, full complement and fourfold sealed angular contact ball bearings.
Precision
The XF2 frame is equipped with the RADO - REAR ALIGNING DROPOUT, a form-fit, exchangeable dropout for toe and camber adjustment. Due to the individually milled dropouts for camber adjustment, the rear needs to be readjusted only slightly after installation.
PRECISION
The XF2 frame is equipped with the RADO - REAR ALIGNING DROPOUT, a form-fit, exchangeable dropout for toe and camber adjustment. Due to individually milled dropouts for adjusting the camber, the rear needs to be readjusted only slightly after installation. This takes the strain off the material. The respective camber height is milled into the RADO with the digits 0, 1, 2 or -1 and -2. After in production toe and camber have been set for the first time, the RADO is fixed with a pin. This makes the original setting easily reproducible and guarantees maximum precision on the trail.
Bosch CX.
Power and Acceleration.
With a maximum torque of 75 Nm, the Performance Line CX is the ideal drive for ambitious and demanding e-bikers. In eMTB mode, you always receive the required power – from Tour to Turbo. Up to 300% of perfectly delivered support, incredible dynamism and unique grip provide the best possible support on all terrains, as well as improved start-up behaviour. The progressive motor support automatically adapts to the individual’s riding style, so there is no need to change support modes in eMTB mode.
Limitless range
With the latest lithium technology.
Bosch batteries used by HNF-NICOLAI are exclusively 500 wh models. They are an efficient energy provider and the most advanced e-bike batteries on the market. They combine impressive mileage performance, a long lifetime and low weight with an ergonomic design and simple handling. Calculate the length of your next trip with Bosch’s range calculator .
Limitless Range. With The Latest Lithium Technology.
Bosch batteries used by HNF-NICOLAI are exclusively 500 wh models. They are an efficient energy provider and the most advanced e-bike batteries on the market. They combine impressive mileage performance, a long lifetime and low weight with an ergonomic design and simple handling. The high-quality lithium-ion batteries are equipped with a Battery Management System, which recognizes potential sources of error and protects the cells from overload. The battery is concealed and perfectly protected by the frame. A convenient function means that the battery pops approx. 2 cm out of the frame when unlocked, making it easier to handle. In addition, a safety mechanism prevents the battery from falling out. The battery is also optimally protected by the frame.

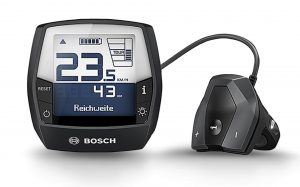

Bosch Intuvia.
You can control your XF2 easily and intuitively with Intuvia. Switching between the five driving modes and retrieving information such as speed, state of charge, distance and many more couldn’t be simpler.
Bosch Intuvia
You can control your XF2 easily and intuitively with Intuvia. Switching between the five driving modes and retrieving information such as speed, state of charge, distance and many more couldn’t be simpler. The display can be easily read in all lighting conditions. Your hands remain safely on the handle bar thanks to the separate operating unit. You always have all riding data clearly in sight. You are always pedalling in the correct gear with the gear recommendation; this saves the battery and increases your range. Even when detached from the bike, the Intuvia active is a useful information tool which keeps all tour data available at your fingertips.
RockShox Lyrik RCT3 DebonAir
The Ultimate Suspension Fork
The new Lyrik RCT3 Dual Position Air is equipped with the Charger 2 damper, which reduces overall weight, increases bump-sensitivity and traction, and reduces the force needed to turn knobs and lock in the best setting for the terrain.
RockShox Lyrik RCT3 DebonAir. The ultimate suspension fork.
The new Lyrik RCT3 Dual Position Air is equipped with the Charger 2 damper, which reduces overall weight, increases bump-sensitivity and traction, and reduces the force needed to turn knobs and lock in the best setting for the terrain. And since today’s enduro riders demand ultimate pedaling efficiency, the new Lyrik is remote compatible, which allows for on-the-fly compression control.
The RockShox Lyrik RCT3 is equipped with the latest DebonAir-Technology. DebonAir is an advancement of the SoloAir air chamber. Improved response and linear spring characteristics are achieved by a larger negative air chamber.
Magura MT5.
German Engineering for Maximum Safety.
The additional braking power of 4 pistons adapted to e-bike use from motor sports gives you the fine control and maximum stability you need on tough Enduro and downhill runs. The full gravity brake power of 4 pistons: Reliable, strong and light on the scales. High-quality components such as the Carbotecture® brake bracket, 4-piston calliper and an ergonomic aluminium lever lower the weight and ensure reliability.
Rohloff E14
Speed up!
The new Rohloff E-14 electronic gear hub sets standards for e-bikes. Never before has shifting in legendary Rohloff quality been more intelligent and comfortable. In combination with the eShift function of Bosch e-bike systems, this results in a uniquely fast shifting performance and a shift unit that can be operated flawlessly.
Rohloff E14
The new Rohloff E-14 electronic gear hub sets standards for e-bikes. Never before has shifting in legendary Rohloff quality been more intelligent and comfortable. In combination with the eShift function of Bosch e-bike systems, this results in a uniquely fast shifting performance and a shift unit that can be operated without errors.
At the touch of a button, the drive takes load out of the system and the Rohloff E-14 shifts (with the button held down, the system will shift in fast sequence of three). When stopping (e.g. at a traffic light), the system automatically shifts back to the start-off gear.
The system, consisting of hub, handlebar switch and control unit, offers a 526% ratio bandwidth, which is subdivided into 14 gears. The transmission is also approved for high speed pedelecs (45km/h). It is prepared with Bluetooth LE for updates and communication with apps.
Gates Carbon Drive.
Maintenance-free, quiet and clean.
Silent and longer-lasting – designed specifically for the performance requirements of an e-bike, Gates’ engineers have developed a new, extremely durable and maintenance-free system. It is 20% lighter and lasts 4 times longer than a well-maintained steel chain.
Gates Carbon Drive
Silent and longer-lasting – designed specifically for the performance requirements of an e-bike, Gates’ engineers have developed a new, extremely durable and maintenance-free system. It is 20% lighter and lasts 4 times longer than a well-maintained steel chain.
In order to meet the special requirements of human pedal force, an optimal belt drive performance with 11 mm pitch was designed. A polyurethane coating guarantees absolute rust-resistance. The patented system thus ensures interference-free and smooth intermeshing of the teeth with proven Gates durability
Supernova E3
The fastest bikes also need the brightest headlights. Here the Supernova lighting system shows its full strength. Even on the darkest routes, it illuminates the road far and wide, providing a comfortable riding experience. The completely CNC-milled aluminium housing is marine-anodised, 100% waterproof, protected against theft and thus suitable for even the hardest of e-bike days.
Motor
Bosch Performance CX 25
BATTERIES
Bosch Powertube 500Wh
Gearbox
Rohloff Speedhub 500/14 E14
Suspension
RockShox Lyrik RCT3 DebonAir 170mm, 27,5" Boost
SPECIFICATIONS
FRAME
MTB 27,5'' S/M, L/XL handcrafted by Nicolai Germany
Motor
Bosch Performance CX 25
Fork
RockShox Lyrik RCT3 DebonAir 170mm, 27,5" Boost
Damper
RockShox Monarch Plus RC3 DB M/L3, 216 x 63mm
Batteries
Bosch PowerTube 500Wh vertical
Display
Bosch Intuvia
Drive Train
Gates Carbon Drive
Belt Disc Front
Gates CDX for Bosch/Rohloff, 22T
Belt Disc Rear
Gates CDX for Rohloff, 22T
Brakes
Magura MT5, 203 mm Storm HC Disc/ Magura MT5, 180 mm Storm/Rohloff
Gearbox
Rohloff Speedhub 500/14 E14
Rear Hub
Rohloff Speedhub A12 DB PM
Handlebar
Satori Deviant
Handelebar Stem
Satori Limes
Seat
Ergon SMA30 Comp Stealth
Handles
Ergon GE1 Evo Slim
Seat Post
Satori Camber
Rims
Ryde Edge 30
Crank
FSA CK-761
Lighting
Supernova V521/Supernova E3
Tyres
Continental Der Baron Projekt ProTection Apex 27.5x2,6“
Max Speed
25 km/h
Colour
black
Weight | Maximum Permissible Weight
27,1 kg | 137 kg
RRP
€ 8.495,-
